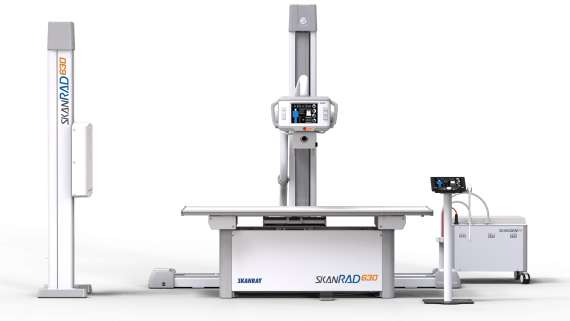

SkanRAD 630: High-Performance X-Ray System

SkanRAD 630

Did you know

Rugged system for high patient workflow

Super Premium 630 is a full room DR with dual detectors

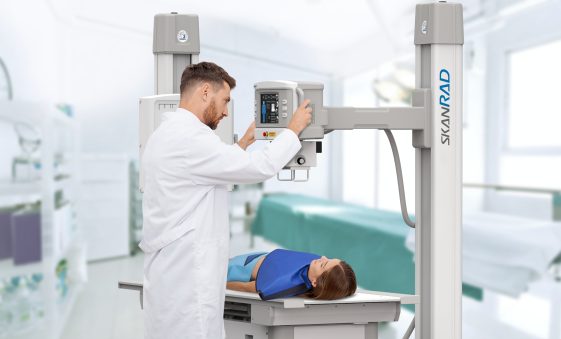

SkanRad 630 has a patient positioning guidance system on the tube head

SkanRAD 630 has Auto stitching, Synchronized movement & Auto tracking

Did you know

Today's Best Price (With Taxes)

With standard accessories and one year warranty

₹20,62,300

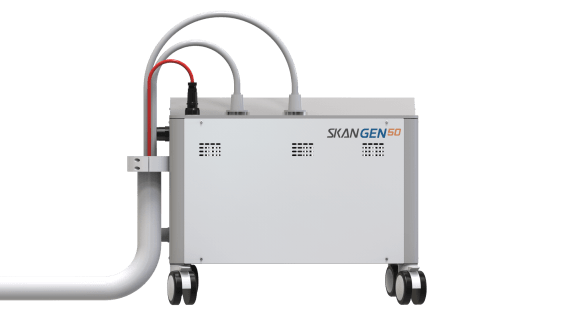

50 kW 50 kHz High Frequency, Constant Potential (DC), FPGA & Micro-controller based Generator
kV Range – 40 kV-125 kV
mA Range – 10 mA-630 mA
mAs Range – 0.1 mAs to 1000 mAs
Exposure Time – 5 ms to 5 sec
Dual focus rotating anode (IEC60336) – 1.0/2.0 mm
Anode heat capacity – 200 kHU
Anatomical Programming setting – user programmable 1250 Max
Tube Head Rotation – ±120°
X-ray Tube Head angle Indicator Goniometer
Tubehead column Rotation – ±180°
Weight bearing capacity of Patient table – upto 200 kg
Input Voltage – 3 phase 400-415V AC, 50-60 Hz

Why SkanRAD 630 is best in the Industry?

Exclusive November Offer

Exclusive Offer

Want to know how SkanRAD 630 is unique?

Ergonomic Design and Easy workflow

Features an ergonomic design and simple workflows that help return the focus to your patients. Motorized hardware, minimal conduit/cables, tracking, and automation for faster examinations place less physical burden on your technicians.

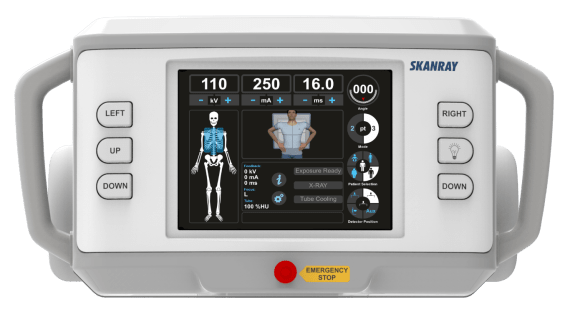

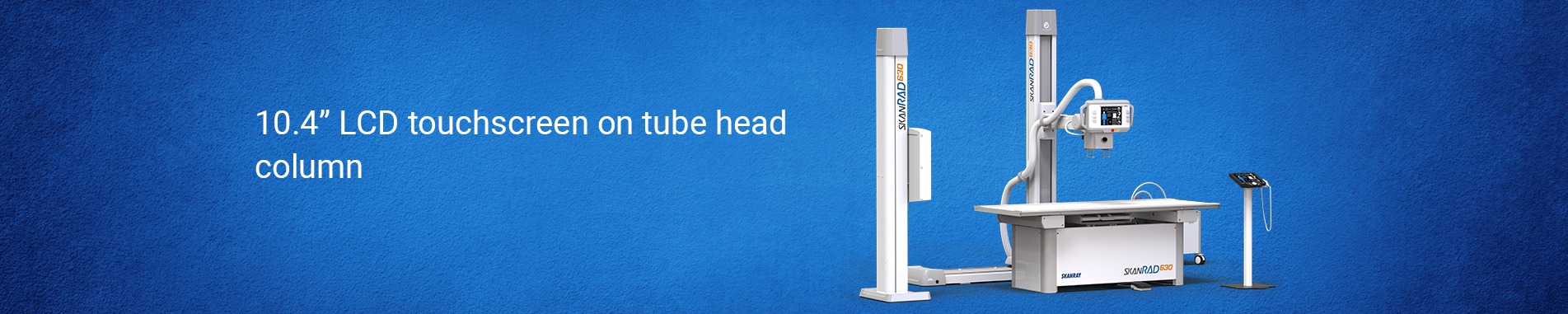

Tube head mounted – 10.4” Touchscreen console

Parameter configuration, Technique selection Button, Digital Angle display and Intuitive patient positioning guidance are available on tube head LCD display.

Scalable DR configuration

Skanrad400 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation CSI wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.

Automated image stitching with sync movements

Multiple images in one fast, seamless, Synchronized automated exam on table and chest Bucky.

Attachable and detachable Grid

Removable grids in both the table and chest stand allow flexible working (such as Pediatrics).

Rotating Bucky

This provides flexible solutions, enabling exposure of areas other than the chest without taking out the panel and inserting it again in rotated direction or using larger panel.

See SkanRAD 630 in action

Talk to customer

What is input power requirement?

3 Phase 400-415 VAC, 50/60Hz

What is input power requirement?

3 Phase 400-415 VAC, 50/60Hz

What is the Anode Heat Content for SkanRAD500?

111kJ (155kHU) for Kailong, 100kJ (140kHU) for Canon

What is the Anode Heat Content for SkanRAD500?

111kJ (155kHU) for Kailong, 100kJ (140kHU) for Canon

What is the Anode Heat Content for SkanRAD630?

142kJ (200kHU)

What is the Anode Heat Content for SkanRAD630?

142kJ (200kHU)

What is the Minimum exposure time?

5ms

What is the Minimum exposure time?

5ms

What is the Maximum exposure time?

SkanRAD630 – 8s

What is the Maximum exposure time?

SkanRAD630 – 8s

What is the Horizontal stroke of Tube head?

1500mm

What is the Horizontal stroke of Tube head?

1500mm

What is the Vertical stroke of Tube head?

1455mm

What is the Vertical stroke of Tube head?

1455mm

What is the Table Bucky stroke?

500mm

What is the Table Bucky stroke?

500mm

What is the Chest Stand Bucky stroke?

1300mm

What is the Chest Stand Bucky stroke?

1300mm
