standard accessories

• High-frequency generator technology with a switching range from 80-250 kHz
• 3.5 kW dual processor monoblock generator with proprietary radiation shielding technology

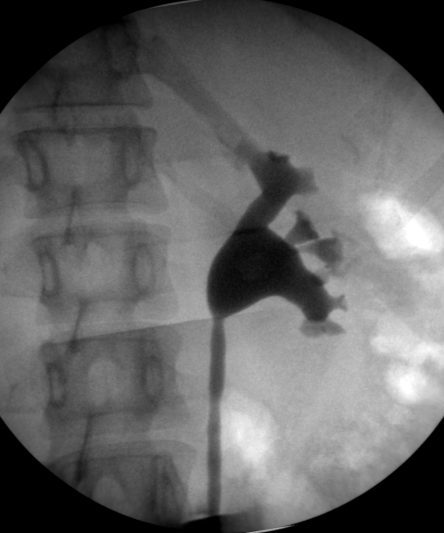

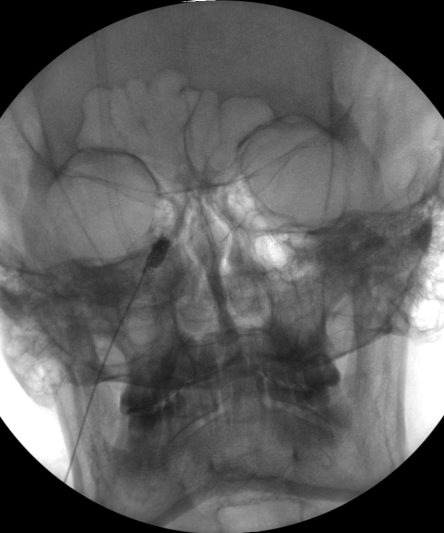

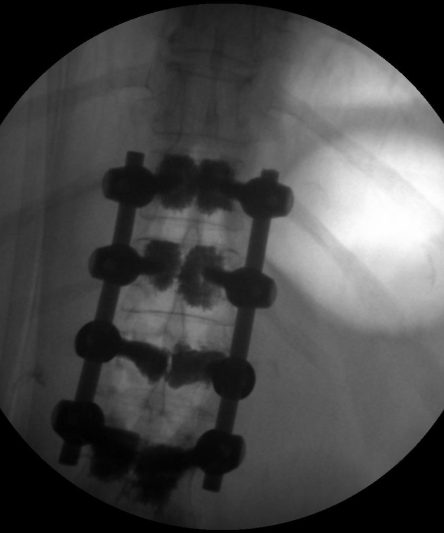

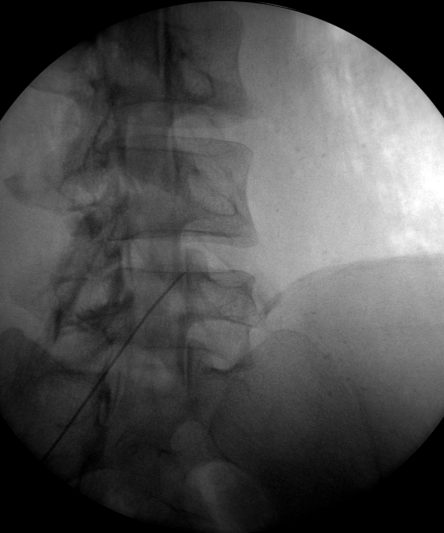

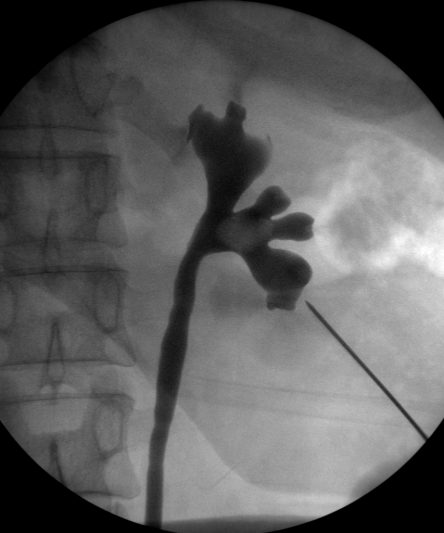

• 9 inch Image intensifier with 1k x 1k acquisition matrix, CCD technology
• kV range: 40 – 110kV in Steps of 1 kV
• mA range for normal fluoroscopy: 0.2 mA to 3 mA
  High-level fluoroscopy: 0.2 mA to 8 mA
  Pulsed fluoroscopy: 0.2 mA to 12 mA
• Pulse rate (PPS): 2,4,6,8
• Focal spot value: 0.6mm/1.8 mm
• Maximum housing heat content: 1150 kHU
• Perfectly balanced system allows for effortless movement of the C-arm
• Overall dimensions: width 800mm – 850mm, length 2700 +200 mm max height 1800 +450 mm max
• Source to image distance: 970 mm
• Immersion depth: 670 mm
• Clear space (free space): 770 mm
• Vertical travel: 450 mm max
• Horizontal travel: 200 mm max

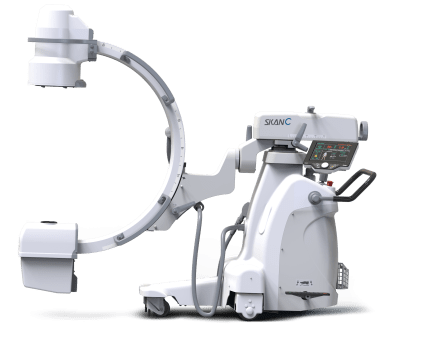

• C-arm movements: Orbital rotation -40° to +90° Max
  Angulation (C-Rotation) ± 180° Min and
  Wig-Wag (Swivel range) ± 12.5° @ Min
• Dual 19” medical-grade monitor
• Integrated DICOM solution

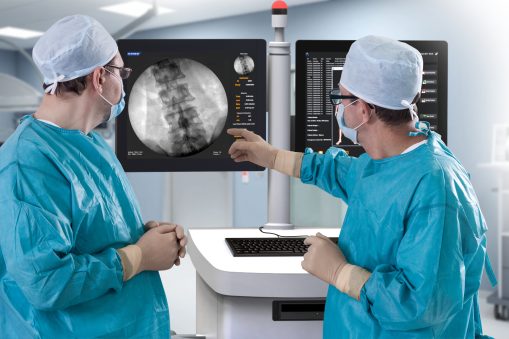

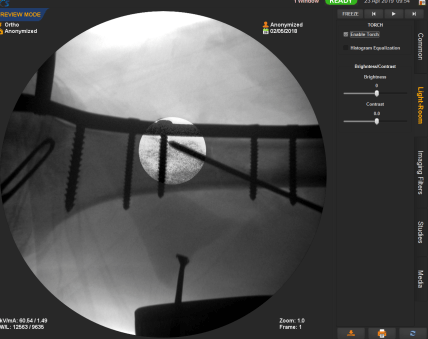

• Advanced image processing — metal correction, ROI selection
• Measurements tool to measure length and angle of image under study
• Seamless DICOM integration included allowing for the transfer of images to your secure database
• Incredible Speed — reboot the application within 45 seconds
• UPS battery backup to prevent loss of patient data
• Remote Diagnostics – save time and money!
