INTRASKAN DC Vet is Skanray’s High frequency Veterinary Intra-Oral Diagnostic Imaging
Has dedicated APR for Canine & Feline
INTRASKAN DC Vet is Skanray’s High frequency Veterinary Intra-Oral Diagnostic Imaging
Has dedicated APR for Canine & Feline
Generator type: High Frequency, Microprocessor Controlled, Constant Potential (DC)
Generator power: 560 watts (max)
Tube Voltage: 60 kV – 70 kV Settable (Step size 1 kV)
Tube Current: 4 mA – 8 mA Settable (Step size 1 mA)
Exposure time: 10 ms to 4000 ms (0.5 FS)
10 ms to 3500 ms up to 6 mA (0.4 FS)
10 ms to 200 ms for 7 mA & 8 mA (0.4 FS)
Focal spot size: 0.4 & 0.5 mm (IEC 60336)
Total filtration: >2.5 mm Al equivalent at 70 kV
Leakage radiation @ 1m: <0.88 mGy in 1 hr (100 mR in 1 hr)
Source to skin distance: 230 mm (in-built), 310 mm with optional cone

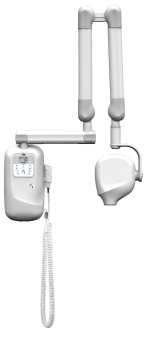

a. Wall mount with scissor arm & extension arm

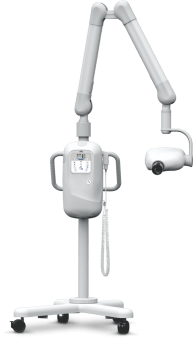

b. Mobile X-ray with scissor arm
What are the variants available?
a. Wall mount with scissor arm & extension arm
b. Mobile X-ray with scissor arm
560 watts (max)
What is the Generator power of Intraskan DC?
560 watts (max)
The system is operable with consistent image quality, virtually anywhere in the world, with a power source from 90V to 264V, 60/50 Hz.
Is the system operable in India & overseas?
The system is operable with consistent image quality, virtually anywhere in the world, with a power source from 90V to 264V, 60/50 Hz.
Is it UL approved?
Yes
Is it AERB type approved?
Yes
Yes, it is compatible with the following:
a. Radiographic Film
b. Digital Sensors
c. Photostimulable Phosphor – PSP
Is it compatible with all types of Image Receptors?
Yes, it is compatible with the following:
a. Radiographic Film
b. Digital Sensors
c. Photostimulable Phosphor – PSP
